System/390 Series (1990) - Index
ES/9000 water-cooled models (9021-###) (1990)
ES/9000 air-cooled standalone models (9121-###) (1990)
ES/9000 air-cooled rack-mounted models (9221-###) (1990)
9672
Launched in 1994 first as the "Parallel Transaction Server" (alongside the 9673 "Parallel Query Server"),[54] subsumed by the "Parallel Enterprise Server" launched later in the year,[55] the six generations of the IBM 9672 machines transitioned IBM's mainframes fully to CMOS microprocessors, as by a strategic decision no more ES/9000 (bipolar-based except the 9221) models would be released after 1994. The initial generations of 9672 were slower than the largest ES/9000 sold in parallel, but the fifth and sixth generations were the most powerful and capable ESA/390 machines built by IBM.[56]
| Model | Year Introduced | Number of CPUs | Performance (MIPS)[k] | Memory (GB) |
|---|---|---|---|---|
| G1 – 9672-Rn1, 9672-Enn, 9672-Pnn[57] | 1994 | 1–6 | 15–66 | 0.125–2 |
| G2 – 9672-Rn2, 9672-Rn3 | 1995 | 1–10 | 15–171 | 0.125–4 |
| G3 – 9672-Rn4 | 1996 | 1–10 | 33–374 | 0.5–8 |
| G4 – 9672-Rn5 | 1997 | 1–10 | 49–447 | 0.5–16 |
| G5 – 9672-nn6 | 1998 | 1–10 | 88–1069 | 1–24 |
| G6 – 9672-nn7 | 1999 | 1–12 | 178–1644 | 5–32 |
In the course of the generations, CPUs added more instructions and increased performance. The first three generations (G1 to G3) focused on low cost.[58] The 4th generation was aimed at matching the performance of the last bipolar model, the 9021-9X2. It was decided to be accomplished by pursuing high clock frequencies. The G4 could reach 70% higher frequency than the G3 at silicon process parity, but it suffered a 23% IPC reduction from the G3.[58] The initial G4-based models became available in June 1997,[59] but it wasn't until the 370 MHz model RY5 (with a "Modular Cooling Unit") became available at the end of the year that a 9672 would almost match the 141 MHz model 9X2's performance.[62] At 370 MHz it was the second-highest clocked microprocessor at the time, after the Alpha 21164 of DEC. The execution units in each G4 processor are duplicated for the purpose of error detection and correction.[63] Arriving in late September 1998,[64] the G5 more than doubled the performance over any previous IBM mainframe,[60][61] and restored IBM's performance lead that had been lost to Hitachi's Skyline mainframes in 1995.[65][66] The G5 operated at up to 500 MHz, again second only to the DEC Alphas into early 1999. The G5 also added support for the IEEE 754 floating-point formats.[67][68] The thousandth G5 system shipped less than 100 days after the manufacturing began; the greatest ramping of production in S/390's history.[69] In late May 1999 the G6 arrived featuring copper interconnects, raising the frequency to 637 MHz, higher than the fastest DEC machines at the time.

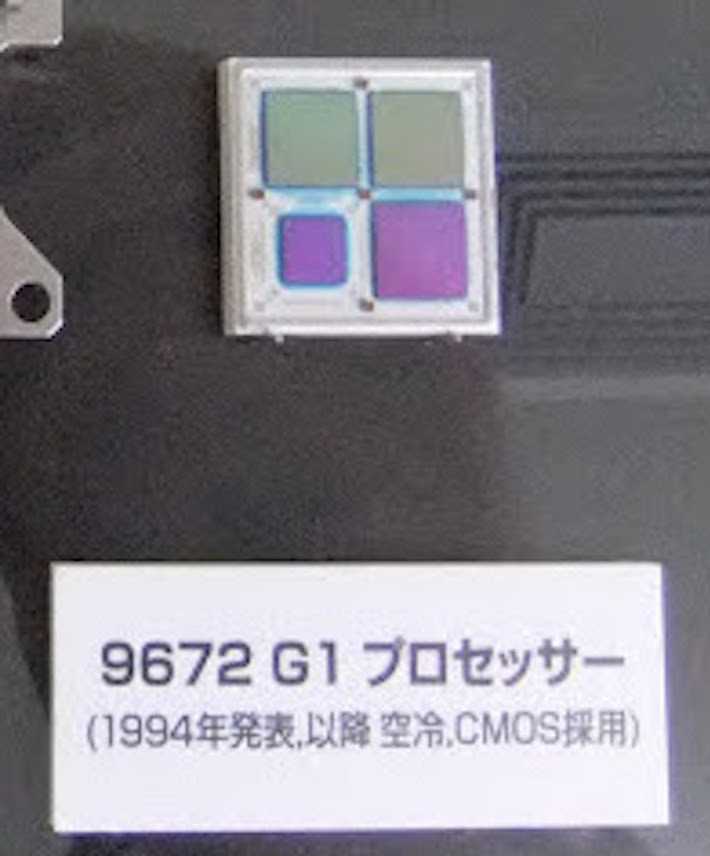

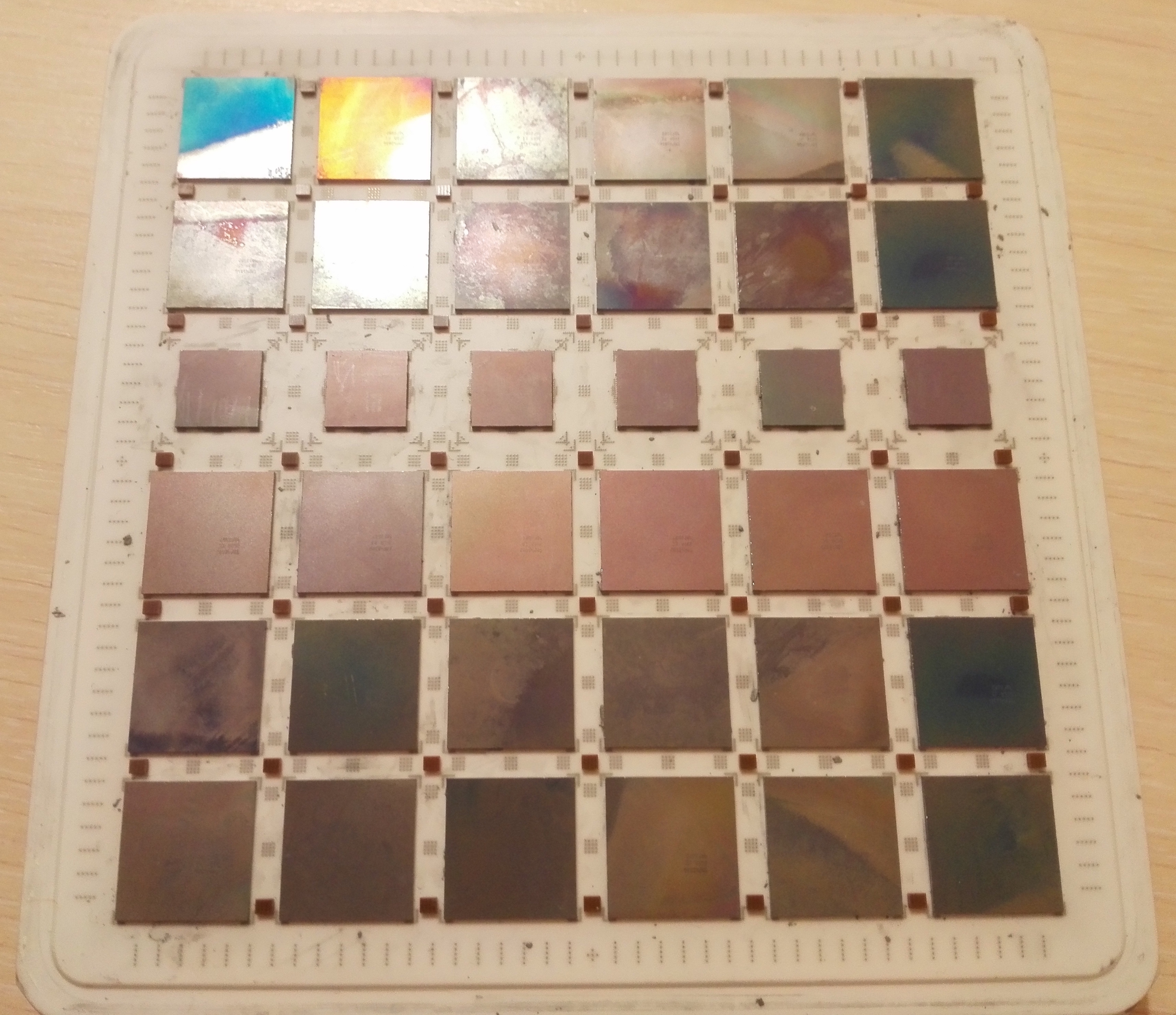

9672 G1 (1994) |
9672 G1 Prototype (1994) |
9675 G1 (1994) |
 |
 |
|

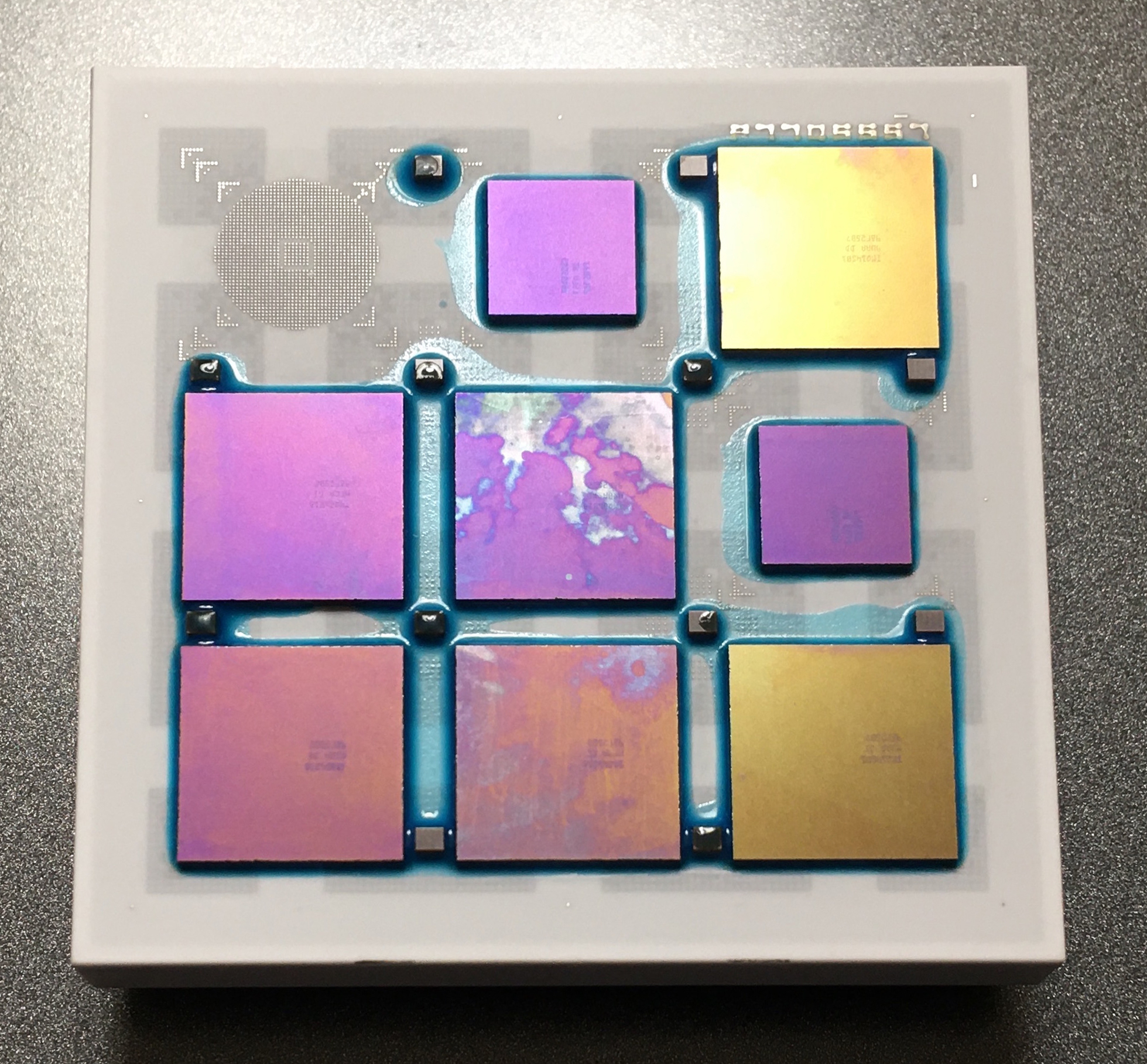

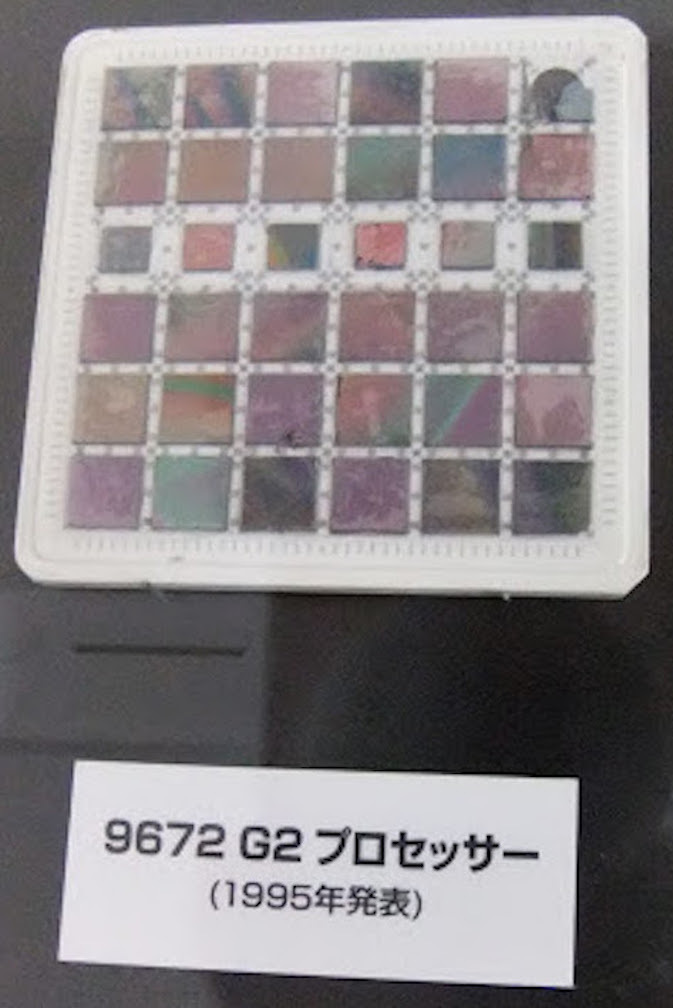

9672 G2 MCM (1995) |

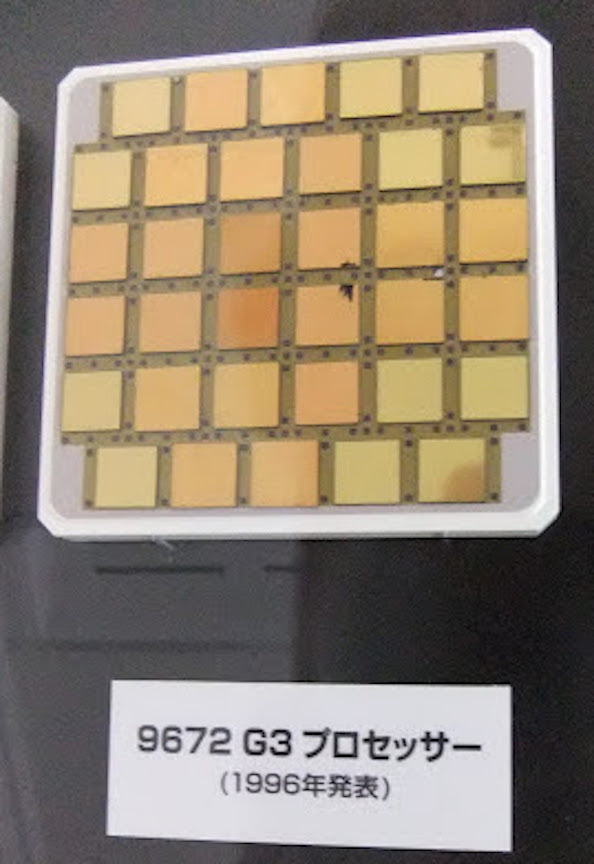

9672 G3 MCM (1996) |

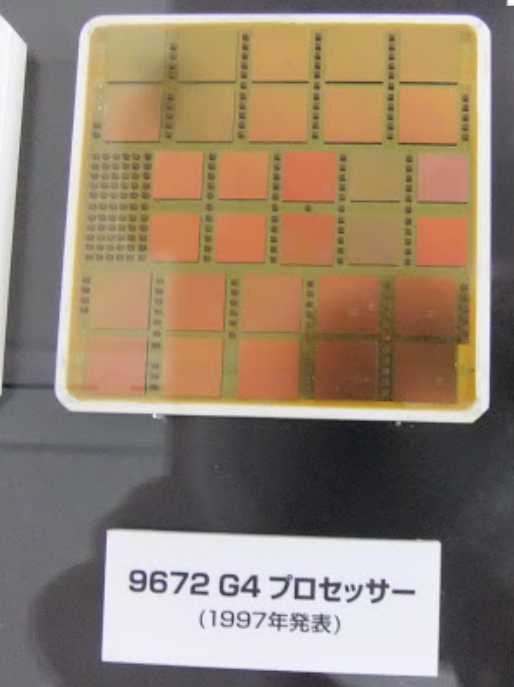

9672 G4 MCM (1997) |
|
S/390 Parallel Enterprise Server G2 |
S/390 Parallel Enterprise Server G3 | S/390 Parallel Enterprise Server G4 |
| 98F2296 |
11J4260 ? 11J4261 ? |
21L2461 11J3665 |
|
|
|
 |

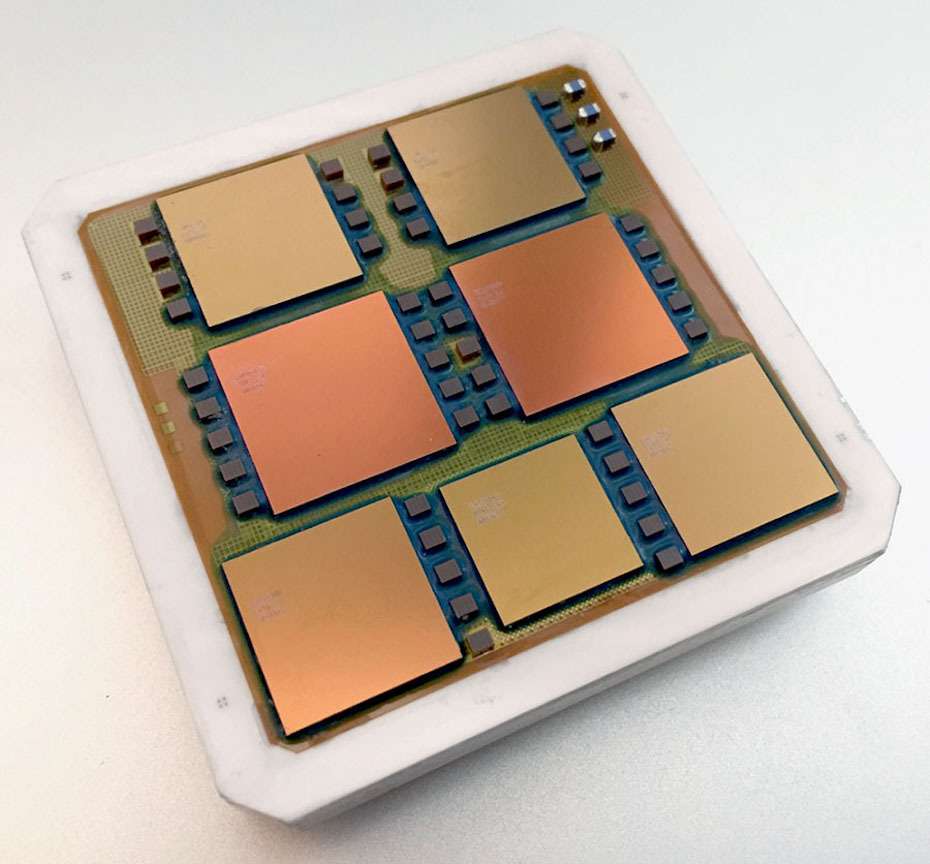

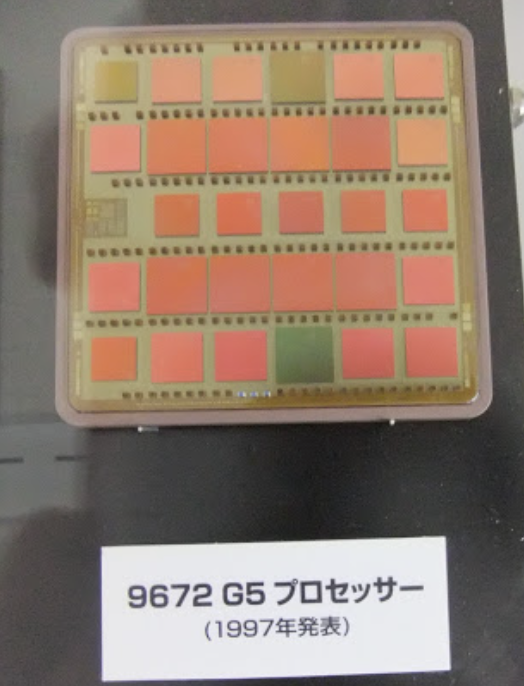

9672 G5 MCM (1998) |

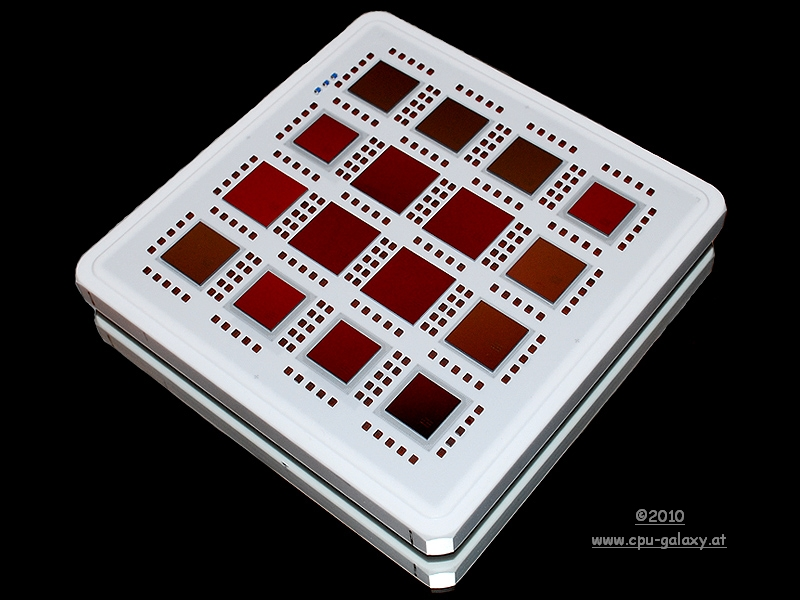

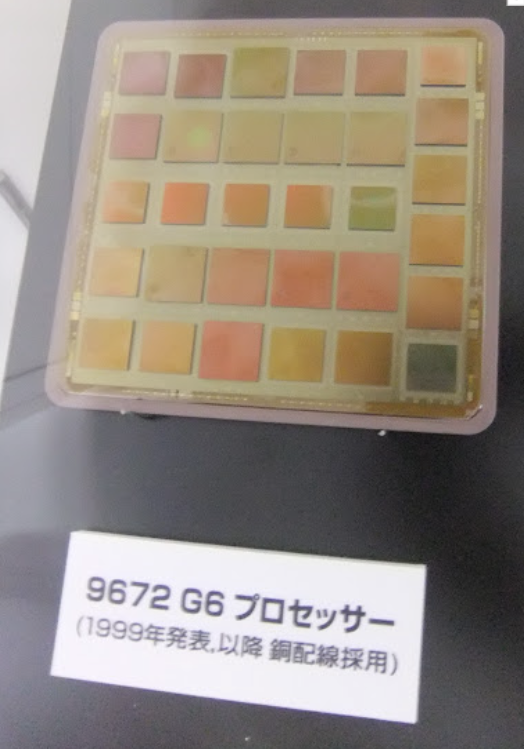

9672 G6 MCM (1999) |
|
| S/390 Parallel Enterprise Server G5 | S/390 Parallel Enterprise Server G6 | |
|
21L2708 21L2710 21L2712 |
31L8402 31L8404 |
|
 |
 |
Other
In September 1996 IBM launched the S/390 Multiprise 2000, positioned below the 9672.[70][71][72] It used the same technology as the 9672 G3, but it fit half as many processors (up to five) and its off-chip caches were smaller. The 9672 G3 and the Multiprise 2000 were the last versions to support pre-XA System/370 mode. In October 1997 models of Multiprise 2000 with an 11% higher performance were launched.[73] The Multiprise 3000, based on the 9672 G5, became available in September 1999, featuring PCI buses.

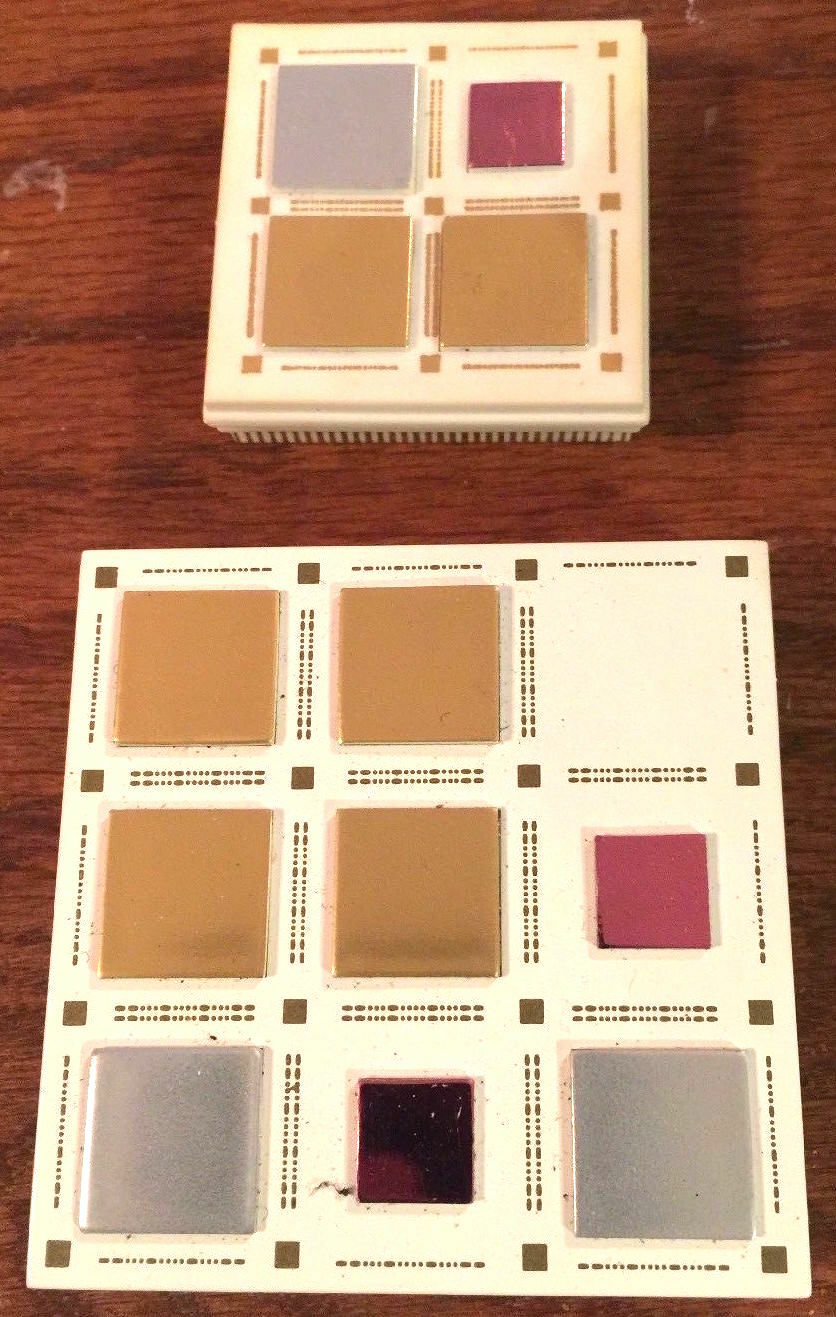

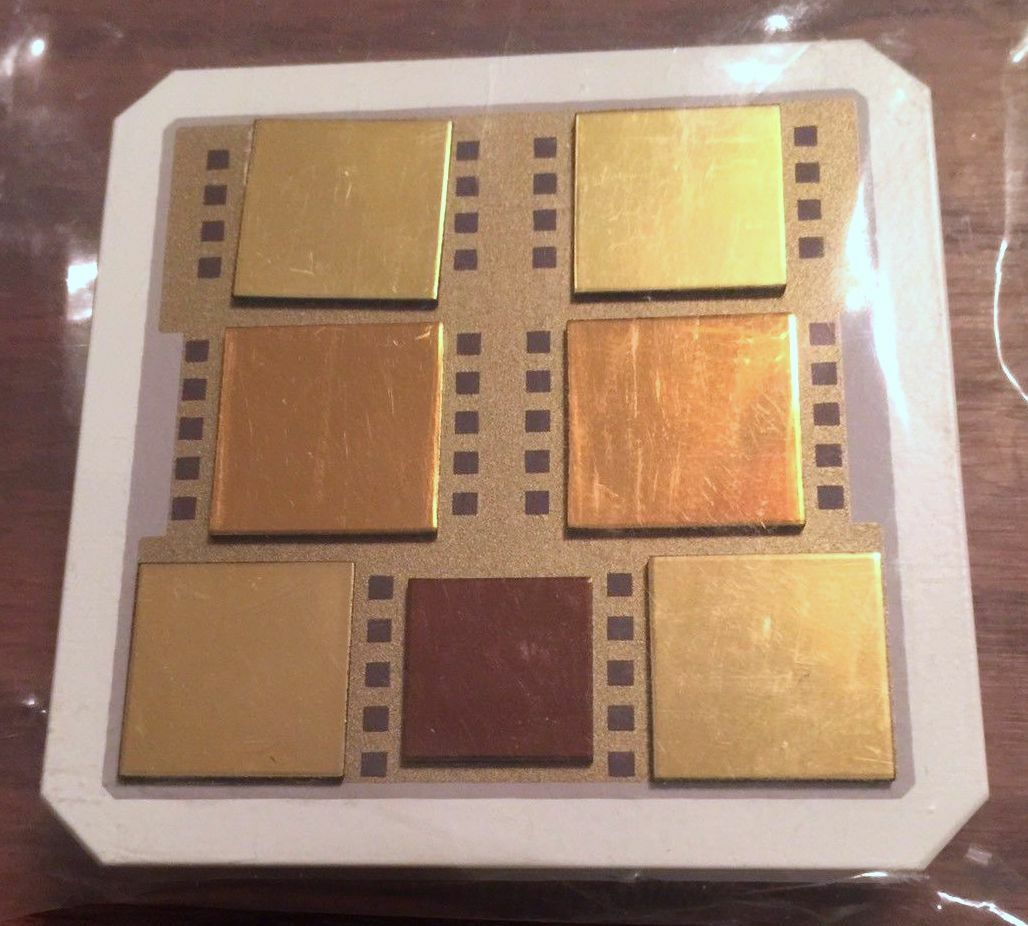

IBM s390 Multiprise 2000 - G3 Business Class MCM (1996) |
IBM s390 Multiprise 2000 - G3 Business Class MCMSalesman's Sample |
IBM s390 Multiprise 3000 MCM |
| 21L4088 | ||
 |
|
|
| Year | System | Processor | Part Number | Photo |
| ES/9000 (1990) | 18 Enterprise System/9000 processor models | 21L2714 |  |
|
| ES/9000 (1991) | 7 models | |||
| ES/9000 (1992) | Two entry-level models | |||
| ES/9000 (1993) | 18 new models including Model 982 | |||

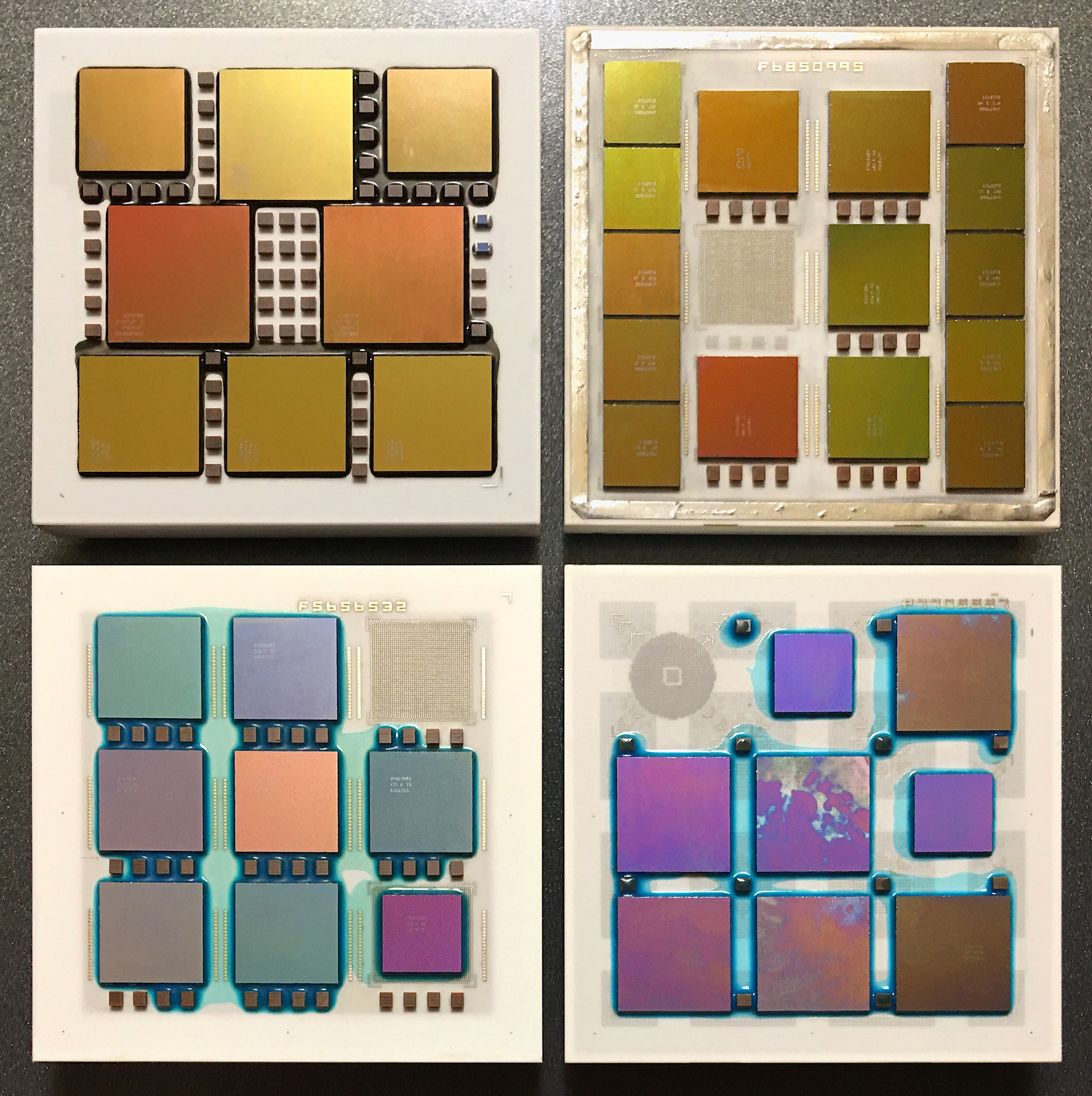

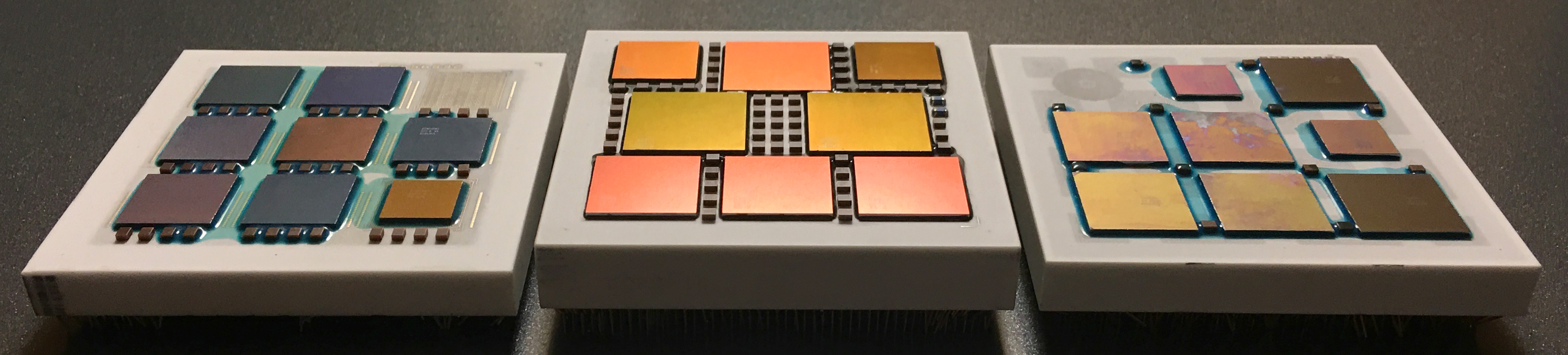

| POWER2 MCM - G1 MCM - Multiprise 3000 MCM |
|
|
||

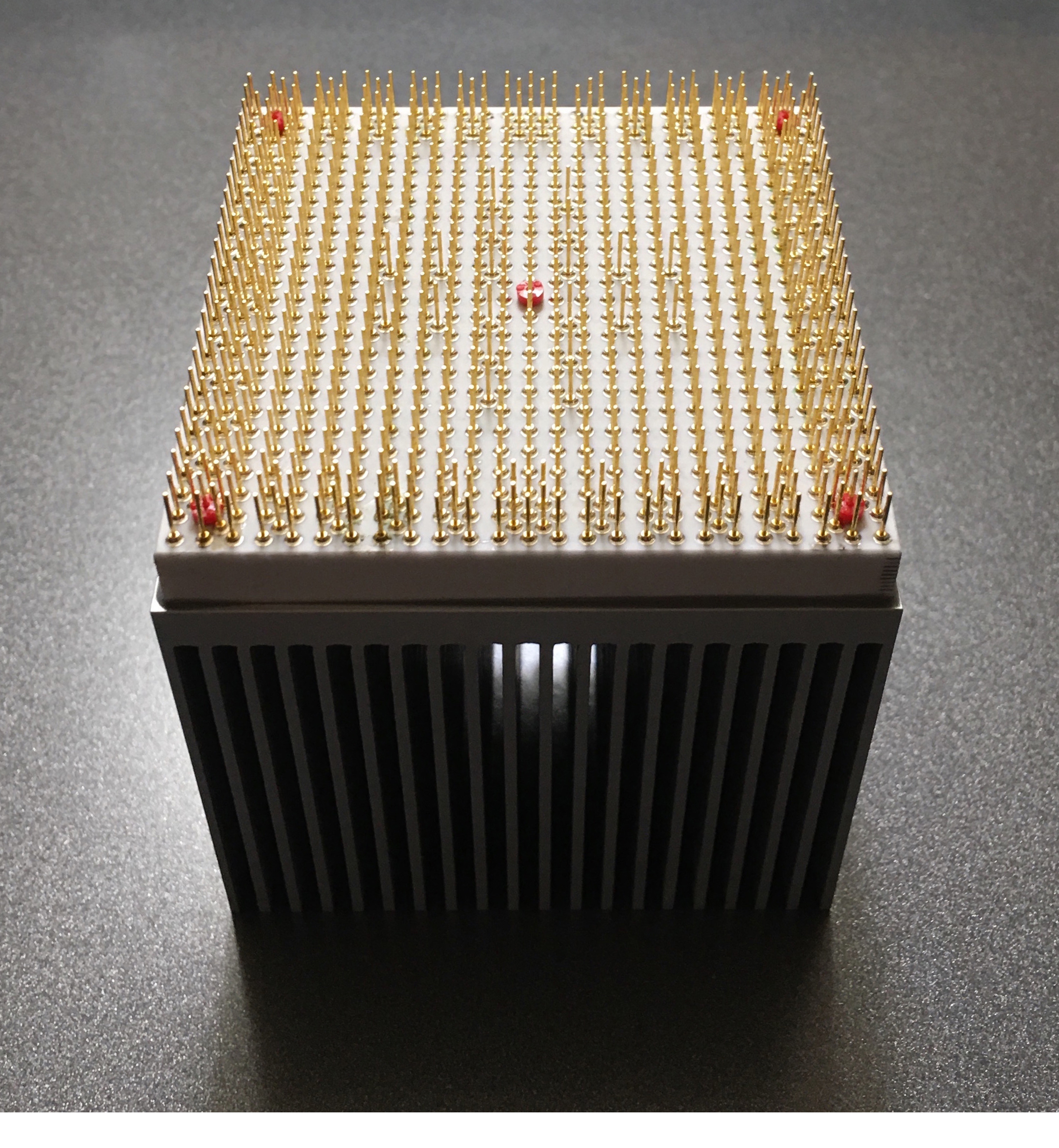

| 9121 White Strip Pin |
73G5955 46G6004 86F2842 58F1711 58F0805 89F8517 89F8890 |
|
-
- (1994) Parallel Sysplex and Parallel Query Server
- ES/9000 (1994) Model 9X2
- ES/9000 (1994) Five air-cooled processor
